Build your own Star Trek The Original Series Communicator

The following tutorial is the work of Will from PA, and you might have seen his work in the ASAP boards. A few months ago, he asked that I host some of his images on this site. After adding a host of images, templates, and Works in progress, Will and I are presenting this tutorial on how to make your own Star Trek communicator from scratch. Follow along with the construction, down load the templates and get in the shop and build you one. Will has been making communicators and phasers for years, and now he wants to share his experiences with the prop building community. Click here to learn how to make your own Star Trek Phaser I & II or a TOS Tricorder.

Supplies

Tools

wood(any 2x4 will do)
sheet styrene
sheet metal (for grill) brass is best.
1/16" aluminum (for midplate)
coat hanger (grill frame)
Model putty
primer paint
semi flat black paint
epoxy
3/4" dowel rod (for grill axle cover)

Band Saw
Router and Table
Bench Sander
X-acto Knife
Chisel
Contour gauge [if using a reference communicator, and not the templates]
3/32" bit
electric drill
awl or punch
sandpaper,coarse medium and fine grit
Dremel
3/32" bit
electric drill
awl or punch



The Reference Prop

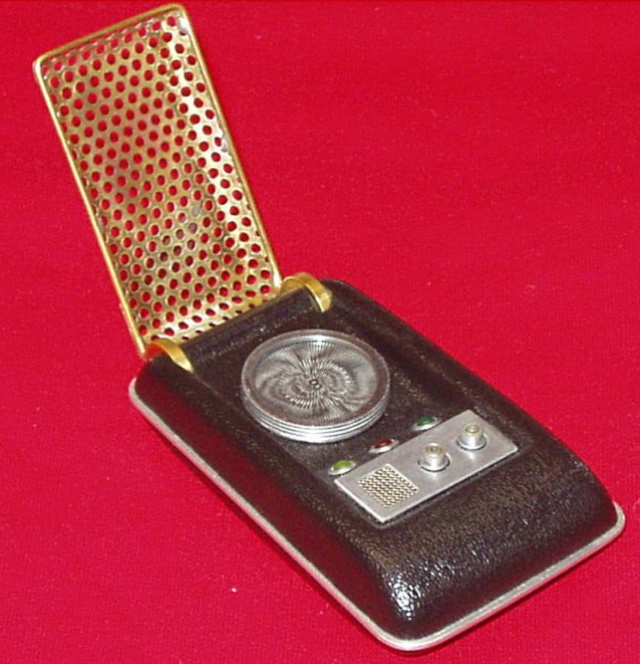

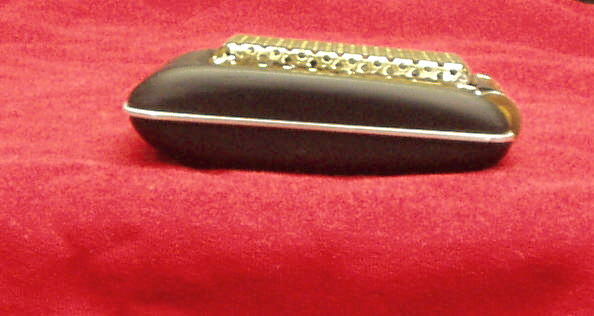

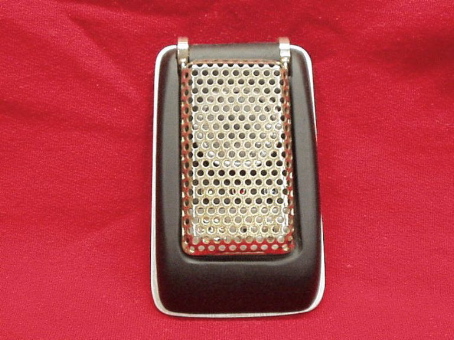

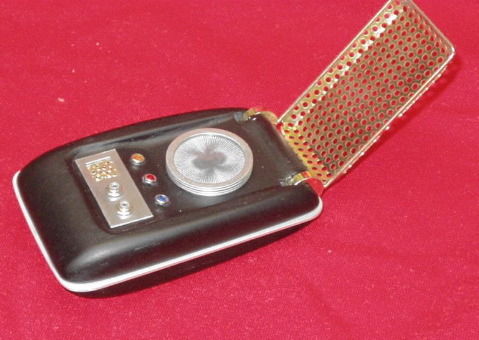

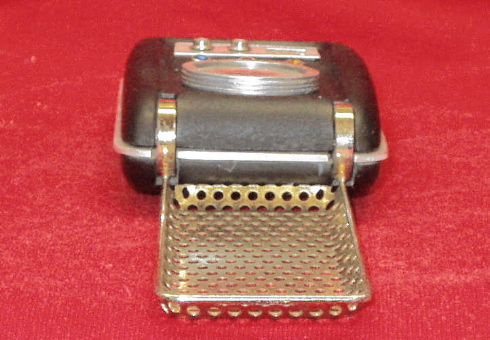

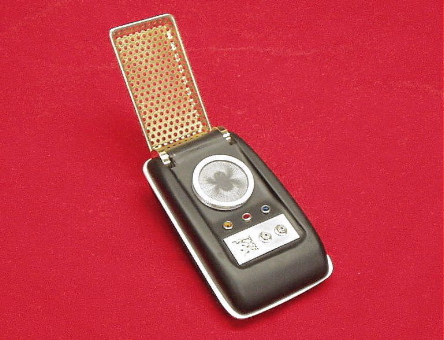

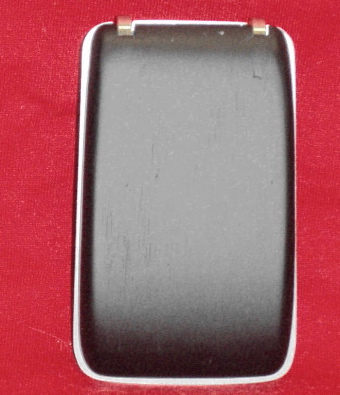

Here is the reference communicator. This is one of the prop replicas that you use to be able to find at the SciFi conventions. The maker is unknown but possibly made by Starland. Will uses a carpenters contour guide to make the templates from.

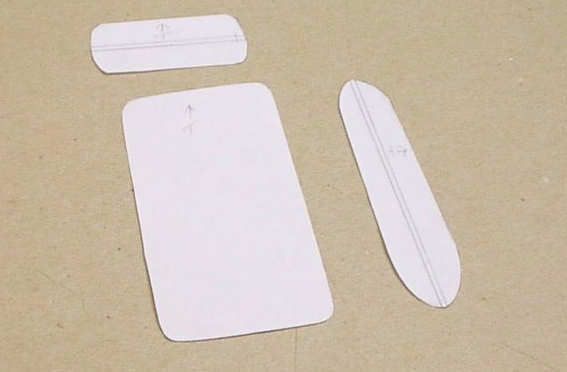

Templates

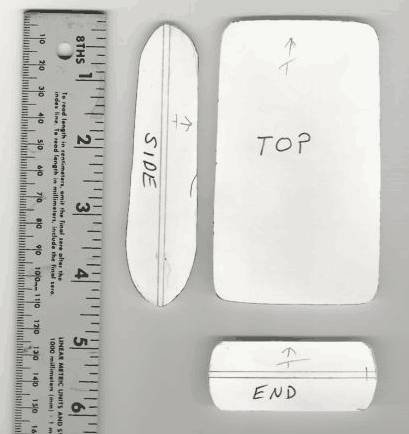

Download the template file. Print it out on your printer. The scale is there to provide a reference for scale.



Body Construction

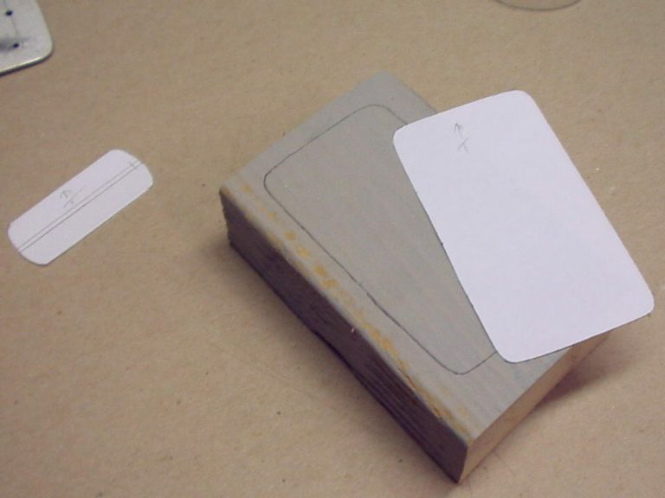

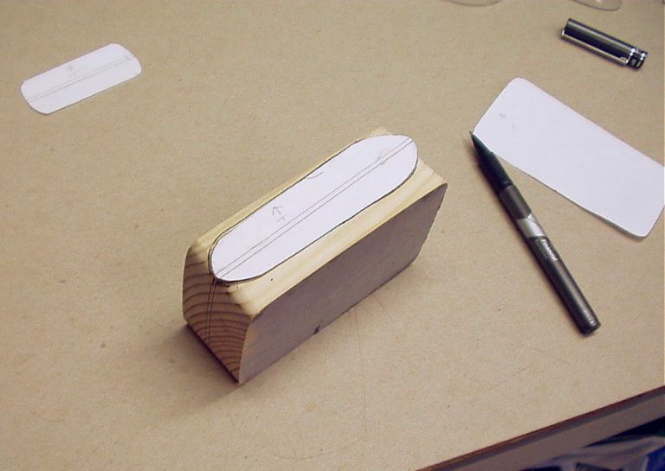

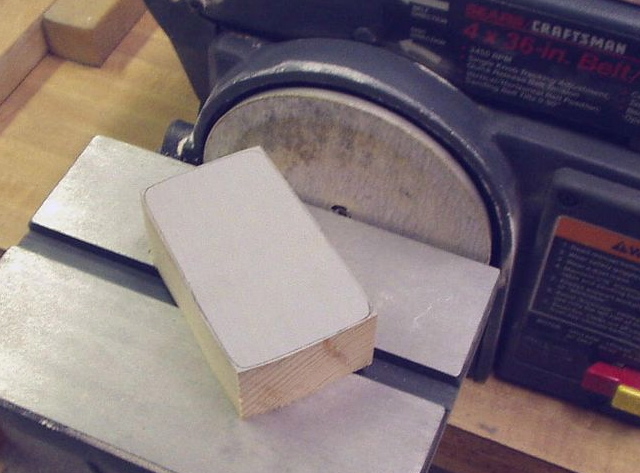

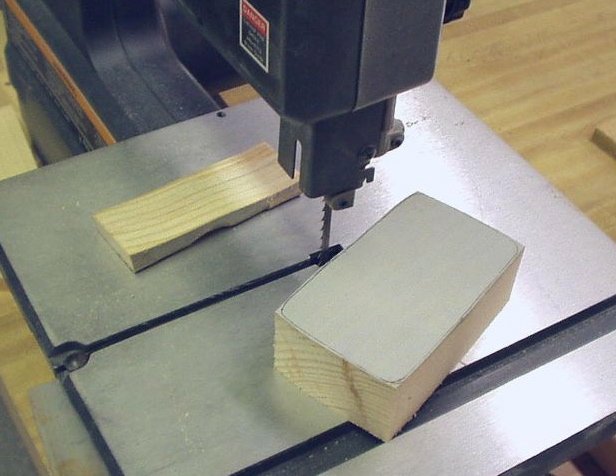

STEP 1: trace the templates onto the wood block STEP 2: cut out rough shape by hand or by using a band saw STEP 3: disk and belt sand to trace line

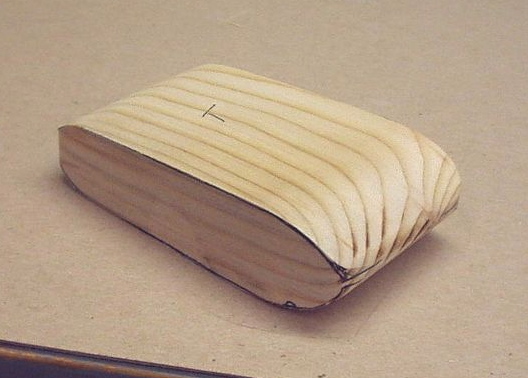

STEP 4: trace side template.Remove most material with band saw then sand STEP 5: disk and belt sand side profile STEP 6: rough block ready for antenna wheel and panel cutout

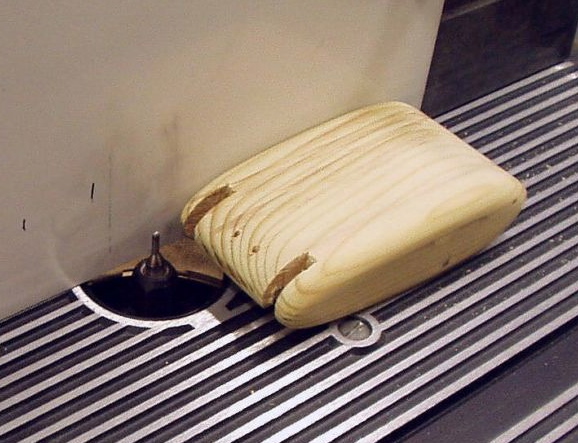

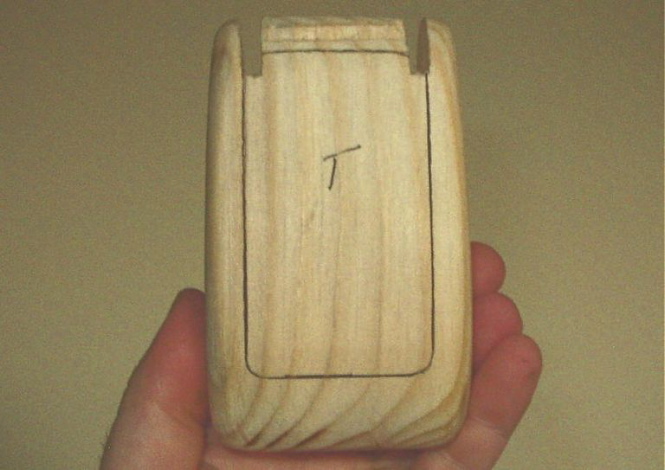

STEP 7: a router is usefull for hollowing out panel area STEP 8: rough antenna fit STEP 9: cut slots for wheels.Mark panel cutout using antenna

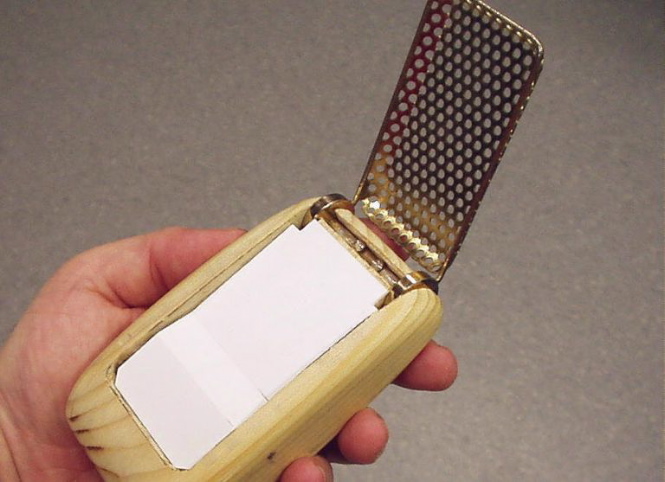

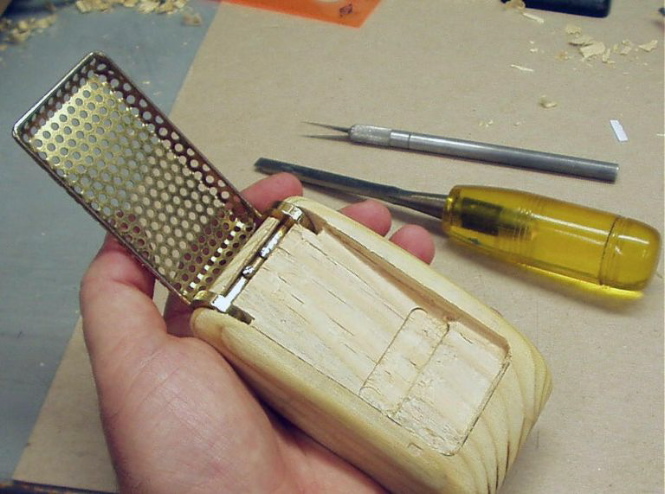

STEP 10: chiseled out panel area STEP 11: styrene insert for panel area so no sanding of chiseled area is required.This will all be puttied in later STEP 12: styrene insert and hinge detail-note axle is removable via two small screws

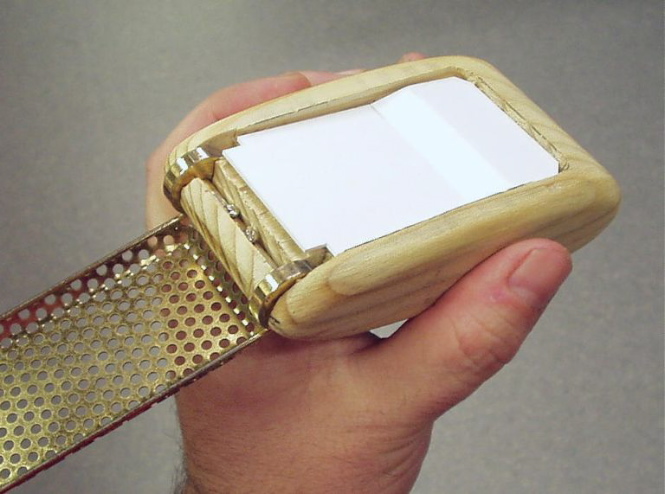

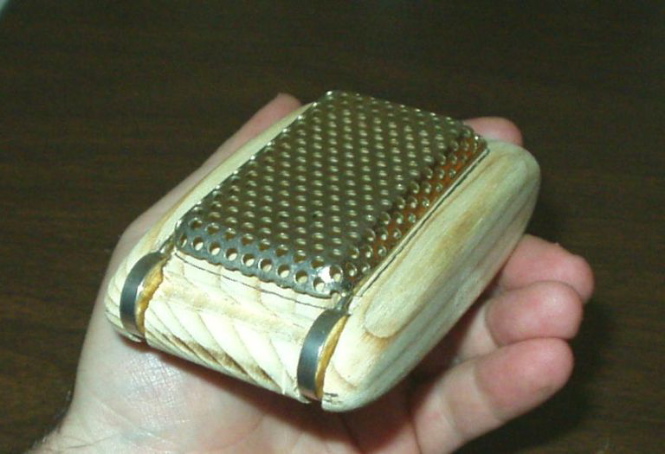

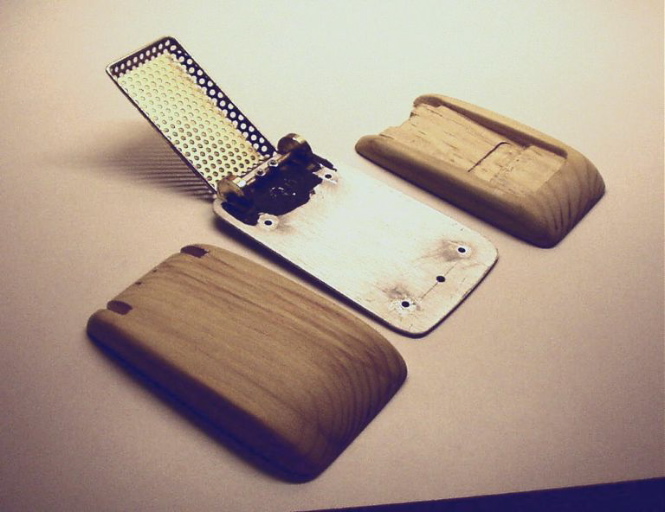

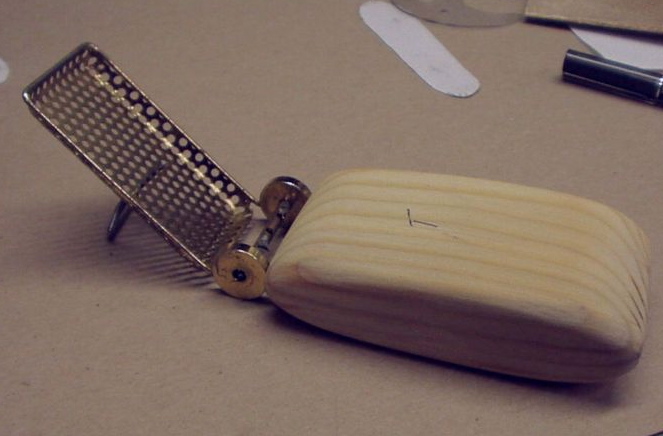

STEP 13: rough fit the grill STEP 14: Exploded view of the two parts  STEP 15: Putty the styrene/wood seams.

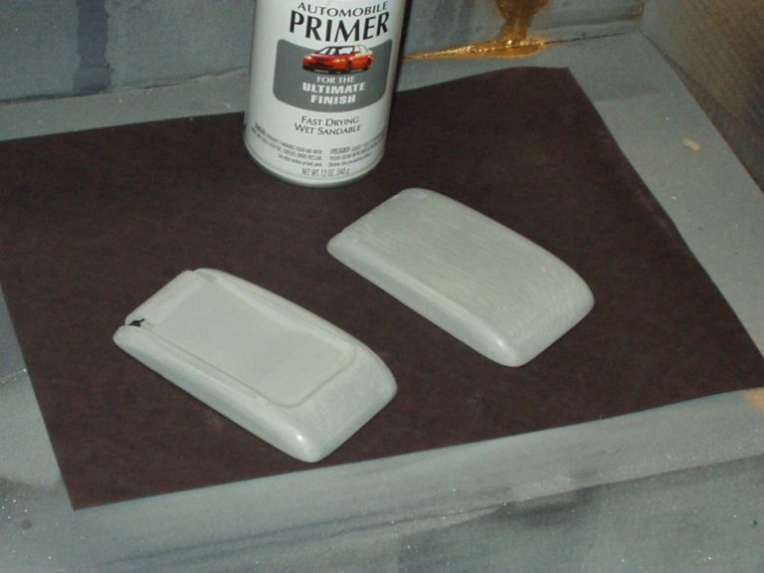

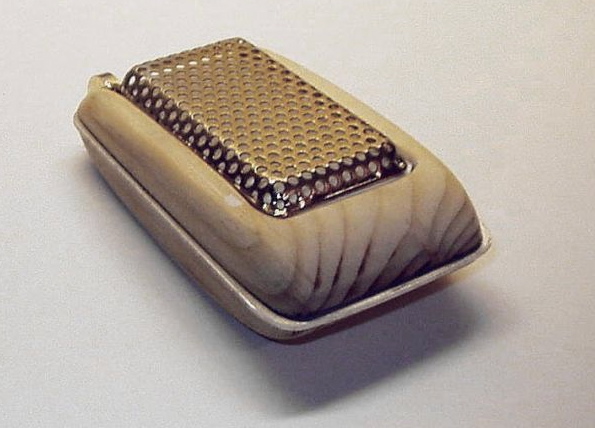

STEP 16: Sand and fill with epoxy. Sand all surfaces smooth. STEP 17: Dry fitting prior to painting.  STEP 18: primer 5 coats

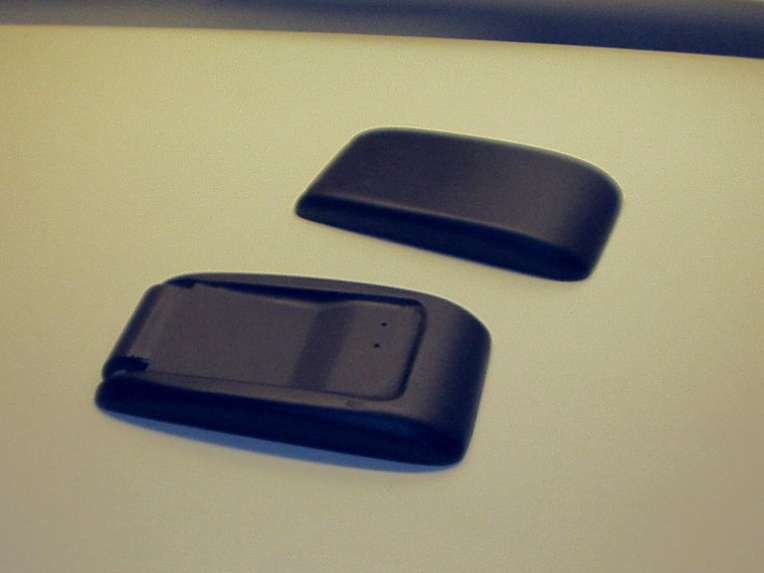

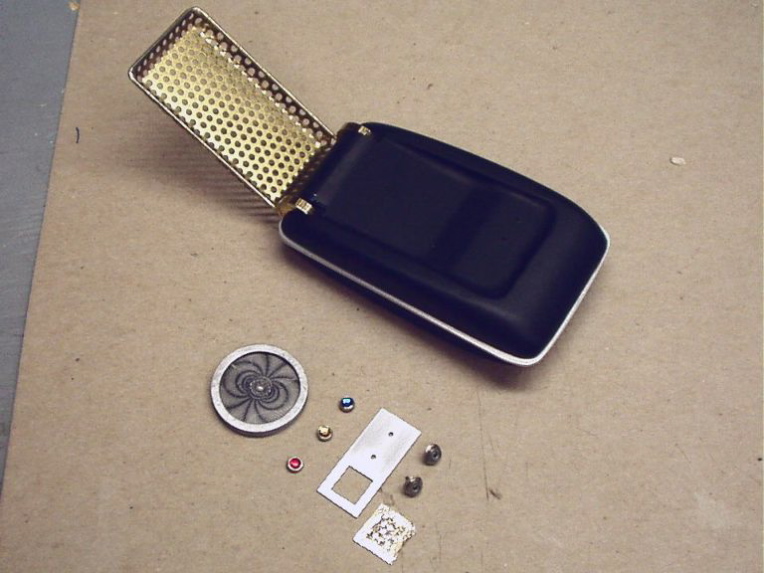

STEP 19: painted halves.I used duplicolor flat black lacquer -about 5 coats STEP 20: halves epoxied to mid plate and parts ready for gluing STEP 21: last look with no parts.notice holes for train wheel shafts

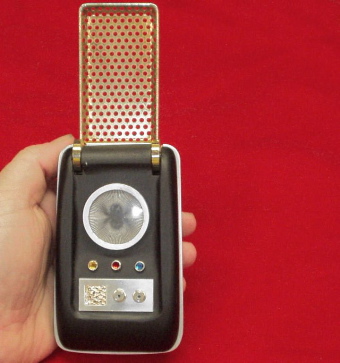

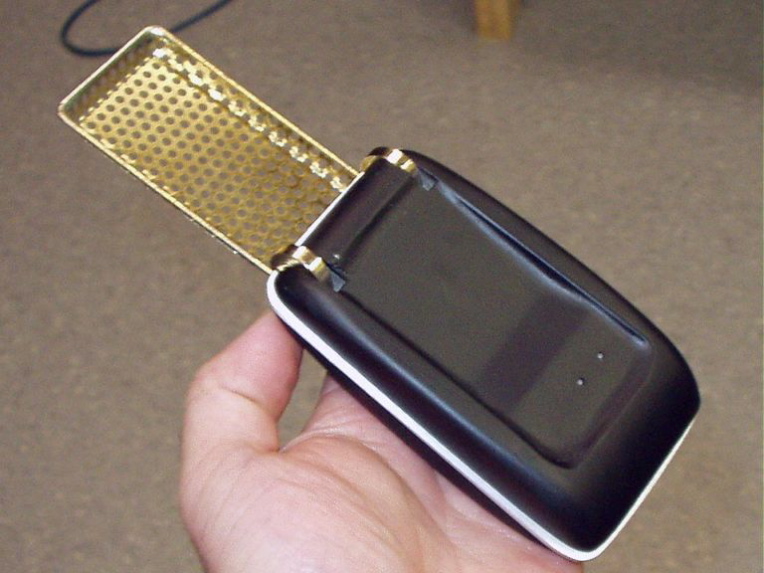

Finished replica.

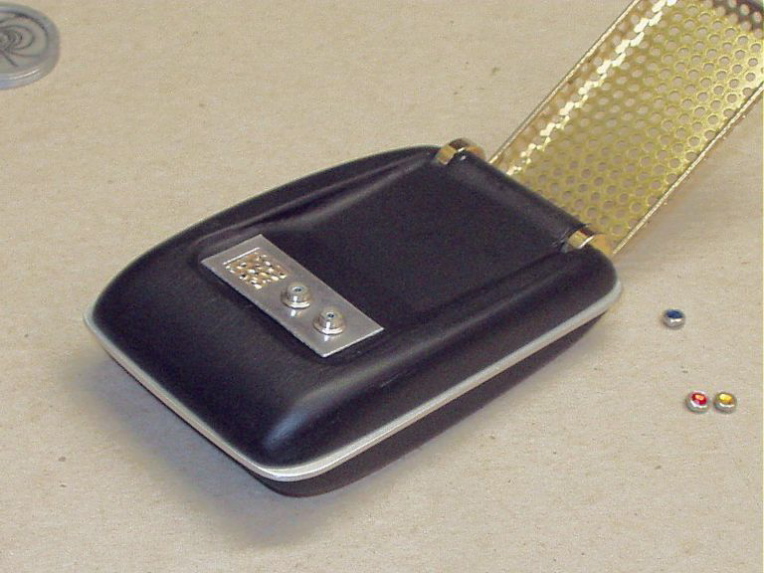

STEP 22: panel,knobs ,and screen are in. (the screen is a piece of kitchen foil pressed into a window screen with 1/32" holes punched in,then painted gold) and only the foil is actually glued on.

Grill Construction

[more images pending] [template pending]

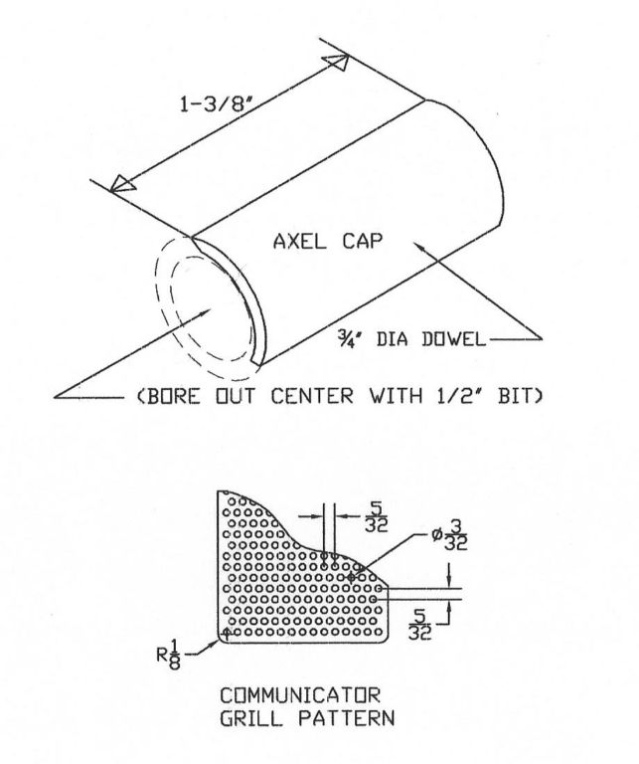

Draft a grid on a piece of paper (3/32 hole on a 5/32 spacing staggered alignemnt)
Lay the grid on sheet metal
Punch each intersection of the grid using awl
Drill each punch mark with 3/32" bit (approx 200 holes to drill)
Fold the flat piece of sheet metal to form the shape of the grill
Bend the coat hanger to fit around the grill and bend at approx 45 degrees at the ends.
Cut 2 sections from a 1/2" metal rod for the wheels.Drill axle holes( I just use an 8 penny nail for the axle)
Drill into the wheels using a bit the size of the coat hanger (usually 1/16")
Stick the free ends of the coat hanger frame into the wheels
Crazy glue the grill onto the frame (crazy glue allows you to "spot weld" metal together.

Another option is to purchase some of the correct grid material. One source would be the cheap grill materials for speakers found at the local Raido Shack.

A final option would be to purchase the correct material from a wholesaler. This can be expensive. One quite for a 4' x 8' sheet of grill materials was into the hundreds of dollars. Ouch.

Morie' Disk

Information pending, but for now, a good source is old computer hard drives! The old Conner series "Tall" type drives have aluminum bushing on the inside that are nearly perfect. Stack three together and volia! Instant morie` disk. [images pending]

Control Panel

Information pending, but for now consider a 1/16 thick aluminum stock. Cutting the "speaker" square hole is the hardest part. [images pending] [template pending]

Jewels & Bezels

Information pending. but most hobby stores have lots of jewels or rhinestones. [images pending]

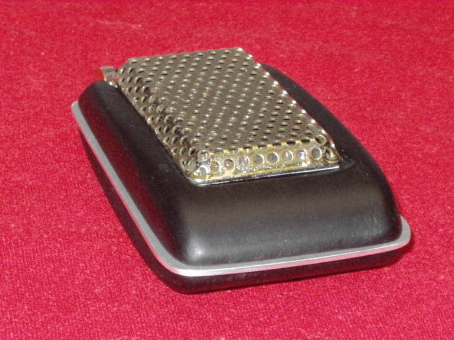

Finished Prop




 *note: all images regarding the construction of the communicator body are property of Will, PA. Used with permission.
